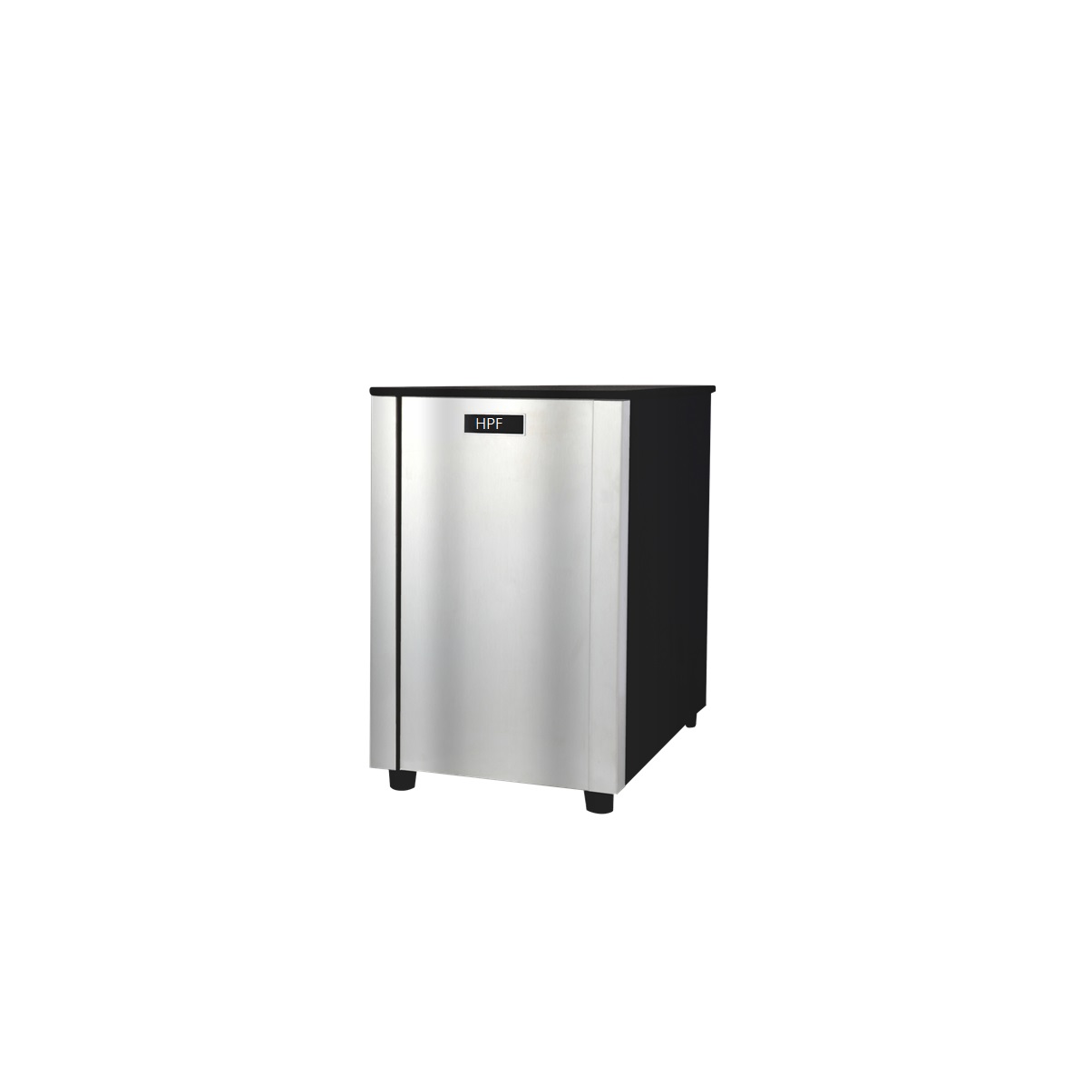

HDS - 802S
Water Dispenser
Free Standing, under counter, inside the cabinet
Hot / Ambient / Soda
Cold / Hot
Hot only
430 Stainless Steel Casing

CME-R3



Model # HDS - 802 HDS-802S HDF - 09
Type Free Standing, under counter, inside the cabinet
Dimension 26.5 X 43 X 41  cm 30 X 40 X 41  cm 19 X 29 X 41  cm
Material of Casing
Plastic / Stainless Steel		 430 Stainless Steel
Material of Frame
Plastic / Stainless Steel		 steel
Material of Heater #304 stainless steel
Compressor TATUNG 　 　
Watt Hot : 750W  ,  Cold: 210W Hot : 650W  ,  Cold: 200W Hot : 750W
Cold Tank (L) 1.7L 　 　
Hot Tank  (L) 4.5L 3L 4.5L
Soda Tank  (L) 　 2L 　
Ambient Tank  (L) Connect outside with RO system as feed water
Filtration Connect outside
Touch Panel / Faucet / Button Faucet / Electronic touch panel faucet
Feature
  • #430 stainless steel casing.
  • #304 stainless steel Hot water tank & Storage tank.
  • SUS316L stainless steel Heater, made in Japan.
  • Hot water faucet with lock.
  • TATUNG Brand Compressor, made in Taiwan.
  • Backup Thermostats : WAKO  (Japanese Brand)

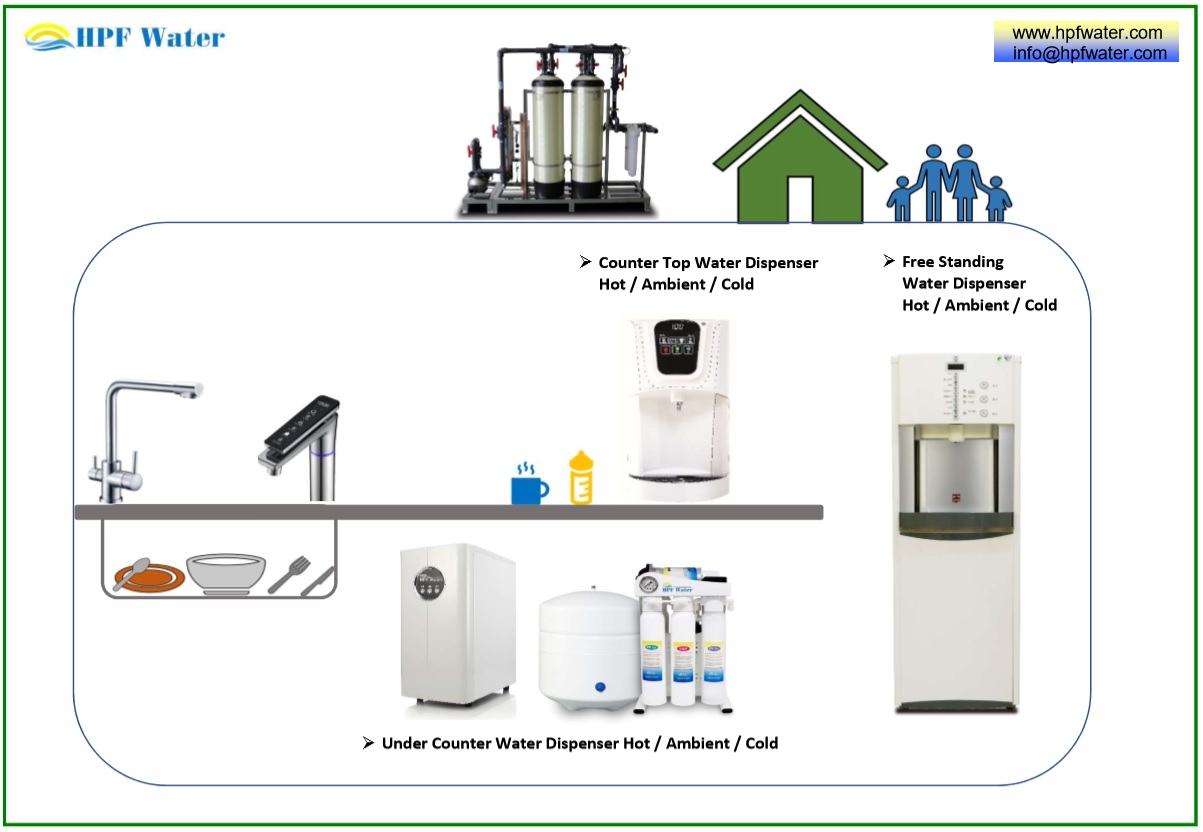

Whole house water purification filtration, point of entry, POE

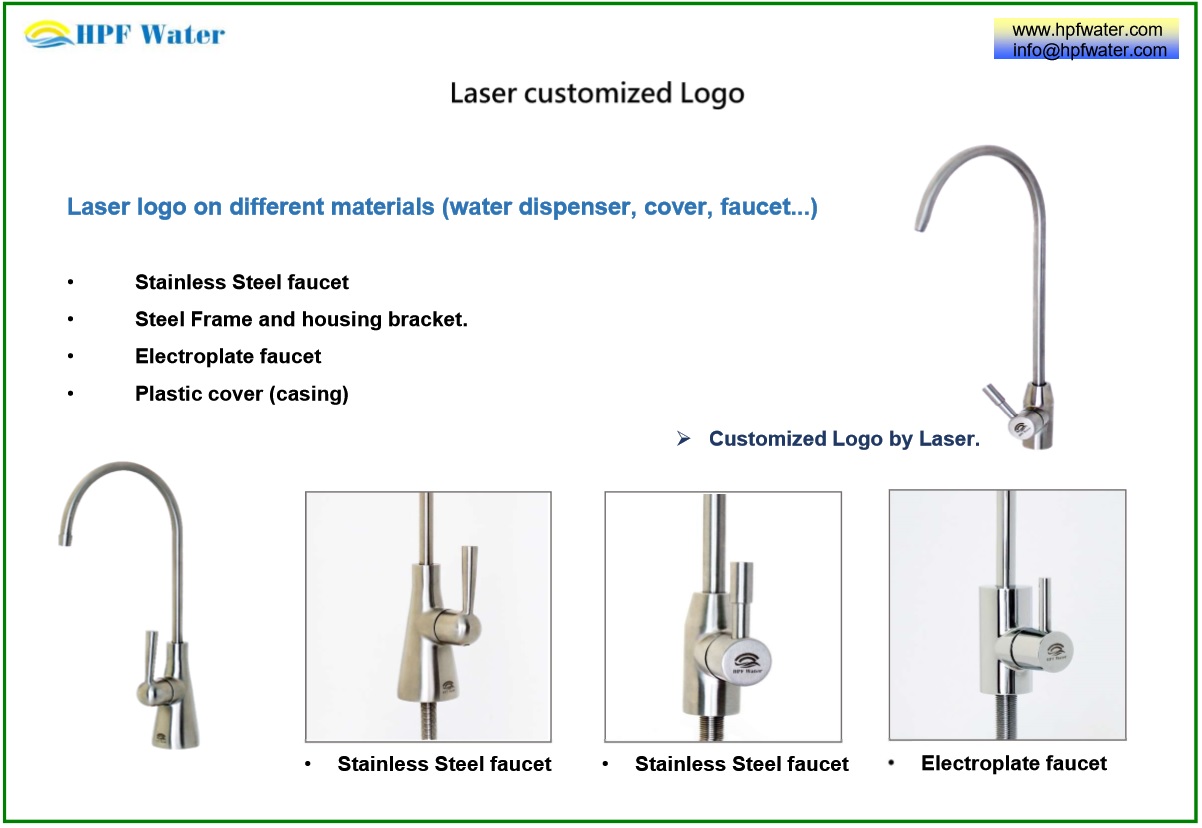

Laser Customized Logo on faucet, appliance cover, water dispenser casing, frame, housing brackets
